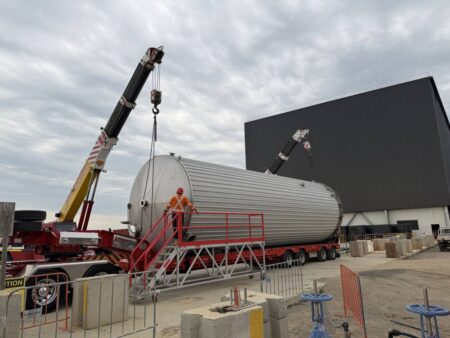

Process water storage tanks - two 100,000 litre and one 30,000 litre tanks were fabricated by Stainless Tanks and Mix. One of the 100kl and the 30kl tank are 316 grade stainless steel for chilled water and the second 100kl is in SAF 2205 for hot water.
Stainless Tank & Mix fabricated a 1200 litre water jacketed & heated mix tank for a repeat customer. We built one a few years ago and now he wanted another…
2 x 5000 litre heavy duty mix tanks. This is the second pair that our customer has ordered. These tanks are to replace some old tanks the customer bought second hand 20 years ago, and is upgrading his whole operation. So while the old tanks did the job after a fashion, he now has a world class set up.
A repeat customer asked for a tank to be fabricated in 316 grade stainless steel. We convinced them to make the product in SAF 2205 to avoid rust spots from vapor condensing on the underside of the lid.

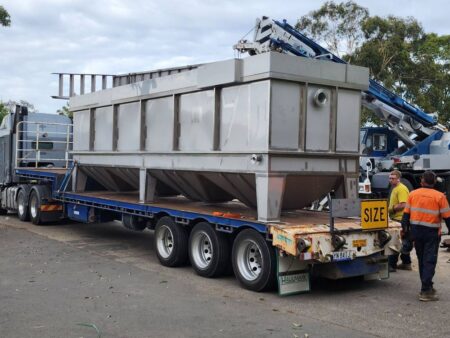

Stainless Tank and Mix built this replacement trade-waste tank exactly the same as the existing unit so that the surrounding infrastructure and pipework would connect back up easily.

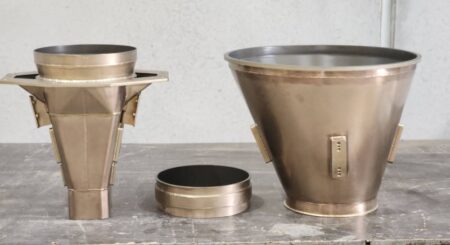

European made filling machine for filling powdered product into 25kg bags kept jamming. A new, relatively complex, PTFE coated chute was manufactured for it. This is what we do.

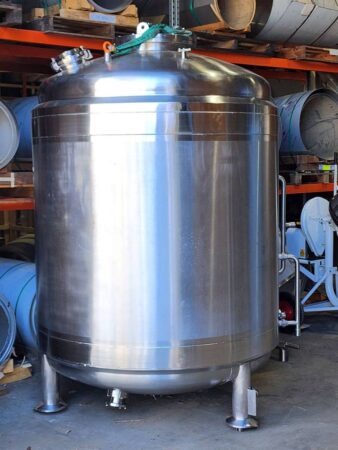

High quality pharmaceutical grade tanks redone by Stainless Tanks and Mix. A new sparge pipe was fitted through the side and nozzles in the top were modified a little for items like a sightglass and a light point.

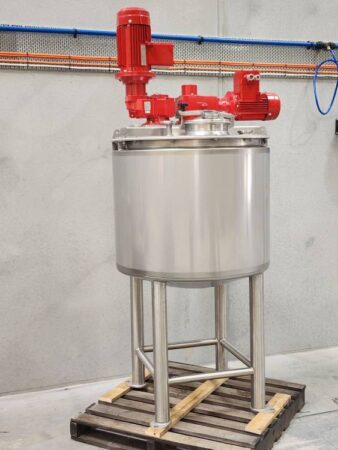

400 litre steam jacketed pneumatic drive mixer. Included is a tidy pump base braced off the bottom of the legs to allow the pump to 400 litre steam jacketed, insulated and clad mix tank comprising of an anchor shear combination with multiple product inlets and nozzles.

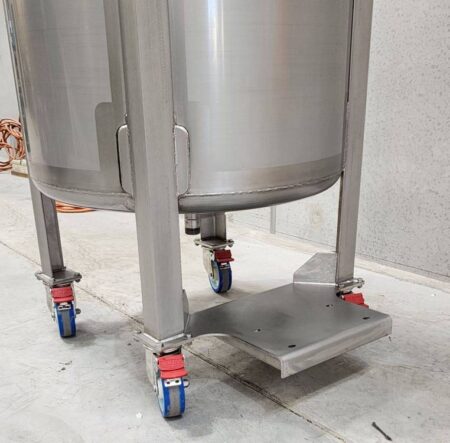

500 litre mobile mix tank in SAF 2205 grade stainless steel. The mixer is a pneumatic drive mixer appropriately sized for the application. Included is a tidy pump base braced off the bottom of the legs to allow the pump to be set up and move with the tank as required.

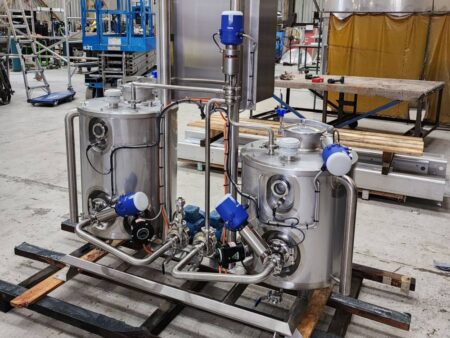

A 75 litre & 50 litre jacketed tank assembly complete with transfer pumps, "think top" butterfly and diversion valves, Allen Bradley HMI panel, electrically heated water jackets with temperature sensor control, sightglass for water jacket level.
A customer came to us for 8 custom 30 litre pots for a lab scale pilot plant, but our standard design was too expensive, so we removed the knuckle, welded from one side only, no grinding of the weld and the new price was accepted.
Mix tank inlet transition that had become paper thin. Keeping stainless steel equipment is so much easier and the longevity is a big factor.
1000L open top tank with a loose fit lid and offset cone bottom fitted with a mixer bracket and framework under the tank to facilitate lifting with a forklift or pallet jack and provide a frame to mount their pump.
6000 litre heavy duty industrial ribbon blender built by Stainless Tank & Mix, still going strong.
There are always some jobs that make you especially proud of the worksmanship and ingenuity – this mixer assembly has come up exceptionally well.
Our revised front tipping design - 90 litre full stainless steel tumble mixer.
Both mixers have a spare bowl, so one can be getting washed while the other is operating. The bowls are easily removed and replaced with a simple clamp at the back.
A 2000-liter ribbon blender is still going strong, the only maintenance it has probably had changes to the gland packing on the shaft seals.
Our recent development of a 200 litre blender to add to our stingray range
A very mobile filling solution for viscous products. The feeder vessel has a cage mixer to keep the product from settling out and by setting the vessel directly above the filler, there is less chance of issues with feeding the filler.
Just finishing off 2 off 2000 litre contra rotating mixers which incidentally is a repeat order of the same fabricated 4 years ago
Another 2000 litre mixing kettle pair complete. The best option for many cases is to have a contra-mix kettle where a very wide range of products can be mixed / cooked / prepared and then this batch of product is transferred to a holding tank.
