Assembly Mixer

Not always 100% proud of some items, but this mixer assembly has come up exceptionally well.

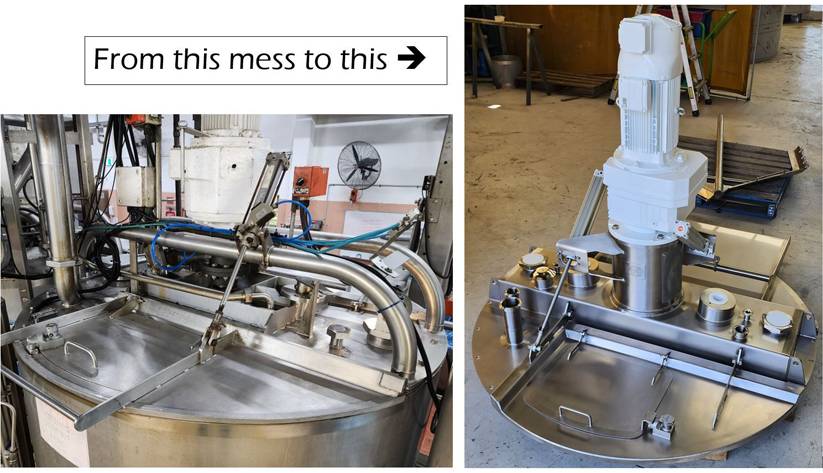

from this mess to this

There were a lot of nozzles and bits that had to be worked out and particularly the lids using a pneumatic cylinder on each which proved difficult to place and be as hygienic as possible and easy to clean and work with all the other nozzles.

pneumatic cylinder
nozzles
mixer assembly

Great job by the design team and the guys on the shop floor.

All designed and built from scratch with pride and care in our Minto workshop.
